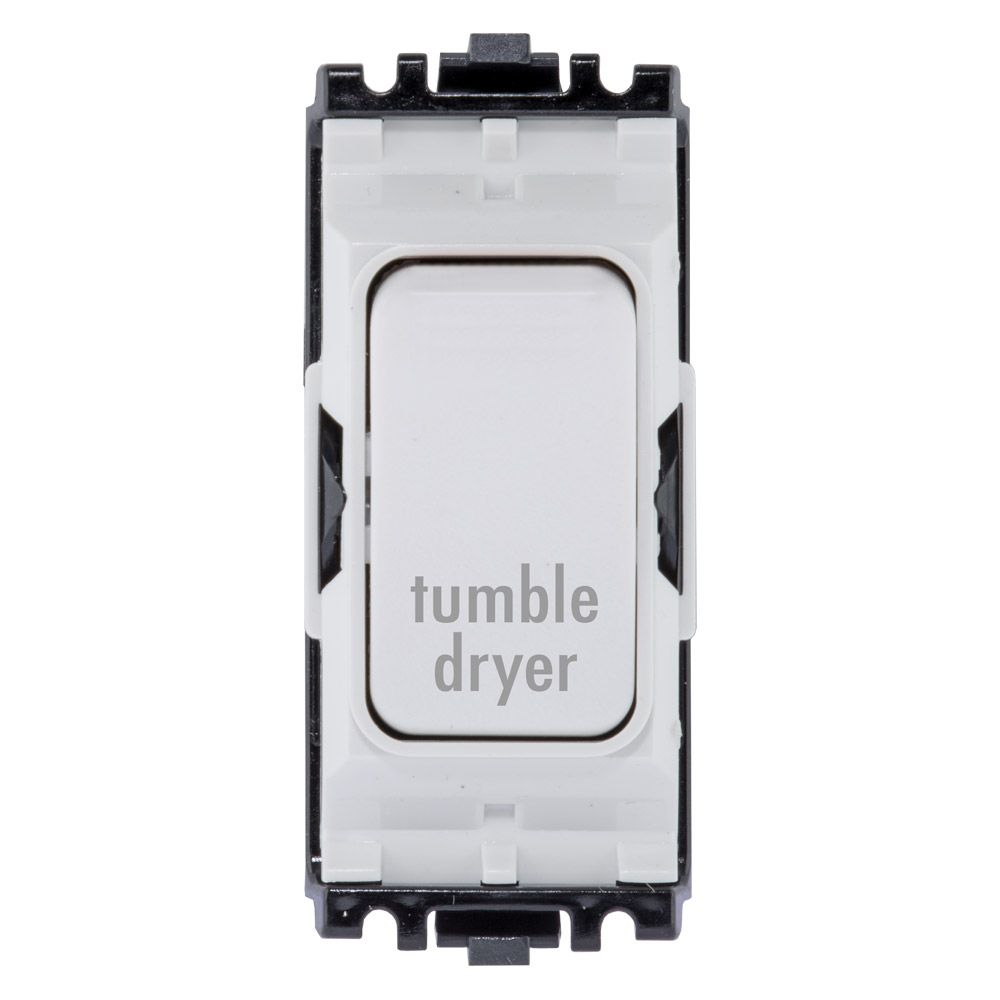

MK Grid K4896TDWHI Grid Switch 20A 1W DP Tumble Dryer
£9.00
£7.50
In stock
Code
K4896TDWHI
MK Grid K4896TDWHI Grid Switch 20A 1W DP Tumble Dryer, easy to fit as it simply clips in to place from the front of the mounting frame
- These switches do NOT have to be derated when used with fluorescent or inductive loads.
- Insert Type: Grid Switch
- Switch Colour: White
- Body & Switch Trim: White
- Minimum Wall Box Depth: 35mm
- Switched Poles: Double Pole
- Current Rating: 20A
- Voltage: 220/250V AC
- Max load: 20 Amp inductive
- Contact Gap Minimum: 3mm
- Terminal Capacity: 4 x 1mm 4 x 1.5mm 4 x 1mm 2 x 4mm or 1 x 6mm
- Product Class 1: Face plate must be earthed
- Ambient Operating Temperature: -5° to +40°C
- Recommended Location: Indoor use only
- Standard/Approval: BS EN 60669-1:2000
| Model Number | K4896 TDWHI |
|---|---|
| Brand | MK |
| Range | MK Grid Plus |
| Insert Colour | White |
| Type | Switch |
| Rating | 20A |
| Poles | Double Pole |
| Ways | 1 Way |
| Voltage | 230V |
| Manufacturer Guarantee | 1 Year |
