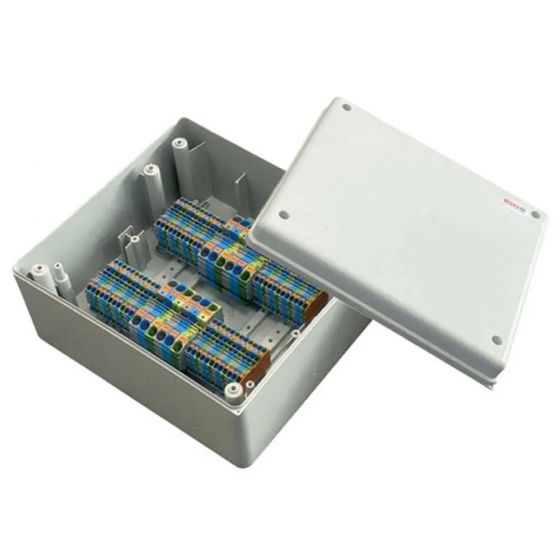

Wiska 20 Way Consumer Unit Relocation Kit IP65

The WISKA Wago 823CURP is a Consumer Unit Relocation Kit designed for domestic dwellings, providing a convenient solution for relocating consumer units with up to 20 ways. It features an IP65 rated polycarbonate enclosure that offers protection against dust and water ingress, making it suitable for a wide range of environmental conditions. The unit's temperature range is from -25 °C to 85 °C, and it has passed the glow wire test at 650 °C, indicating good resistance to high temperatures. Its impact resistance is rated at IK08, ensuring durability against physical impacts.

Key Features of Wiska 20 Way Consumer Unit Relocation Kit IP65:

• 2202-1201 - Grey 2 conductor up to 4mm, 32A (x16)
• 2202-1204 - Blue conductor up to 4mm, 32A (x16)
• 2202-1207 - Green/Yellow 2 conductor up to 4mm, 32A (x16)
• 2210-1201 - Grey 2 conductor up to 16mm, 76A (x4)
• 2210-1204 - Blue 2 conductor up to 16mm, 76A (x4)
• 2210-1207 - Green/Yellow 2 conductor up to 16mm, 76A (x4)
• 2002-1292 - Orange Endplate for 2202 (x2)
• 2010-1292 - Orange Endplate for 2210 (x2)
• Ensure secure, maintenance free connections
• Material: Polycarbonate
• Impact resistance: IK08
• 1/4 turn fast screw system 1 screw attached to lid tamper-proof seal smooth sides
• Temp range: minimum -25 degrees, maximum: 85 degrees
• Glow wire test: 650 degrees
• IP rating: IP65
• Height: 270mm
• Width: 250mm
• Depth: 140mm
• Voltage: 230V
