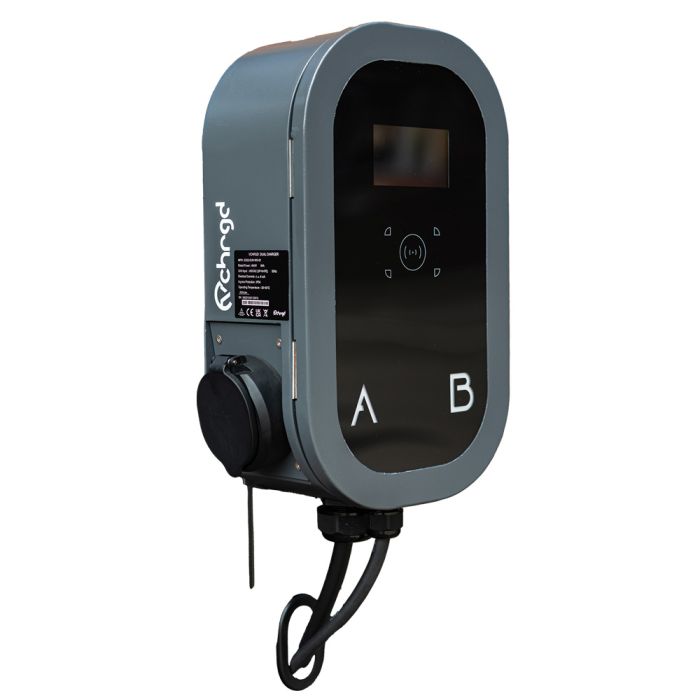

VCHRGD Twenty Two Dual Untethered Dual EV Charger 22kW Type 2

VCHRGD Twenty Two Dual Untethered Dual EV Charger 22kW Type 2 is a high-performance 22kW electric vehicle (EV) charger designed to meet the demands of both commercial and residential settings. With its dual charging capabilities, robust construction, and advanced features, it offers a reliable and efficient solution for simultaneous charging of two vehicles

Key Features of VCHRGD Twenty Two Dual Untethered Dual EV Charger 22kW Type 2

• Equipped with two universal Type 2 sockets, each capable of delivering up to 22kW, allowing two vehicles to charge simultaneously at high speeds
• 22kW per socket max output, step down to 2 x 11kW for 3 phase inputs or 7.4kW for 1 phase
• Dynamic load management with CT’s provided, Master/slave configuration
• Dual internal MID meters and 4.3 LCD display
• Customisation options for front fascia and touch screen
• OCPP 1.6J with back end options programmable at install
• Type 2 Connector
• Robust and corrosion resistant aluminium casing
• Built-in PEN Fault Protection
• Magnetic tamper switch
• Operating Temperature: -20° to 50°C
• Max Current: 32A/64A
• IP Rating: Sockets rated to IP54, casing rated to IP65
• IP rating: IK10
• Depth: 135mm
• Width: 254mm
• Height: 465mm
• Guarantee: 3 years
