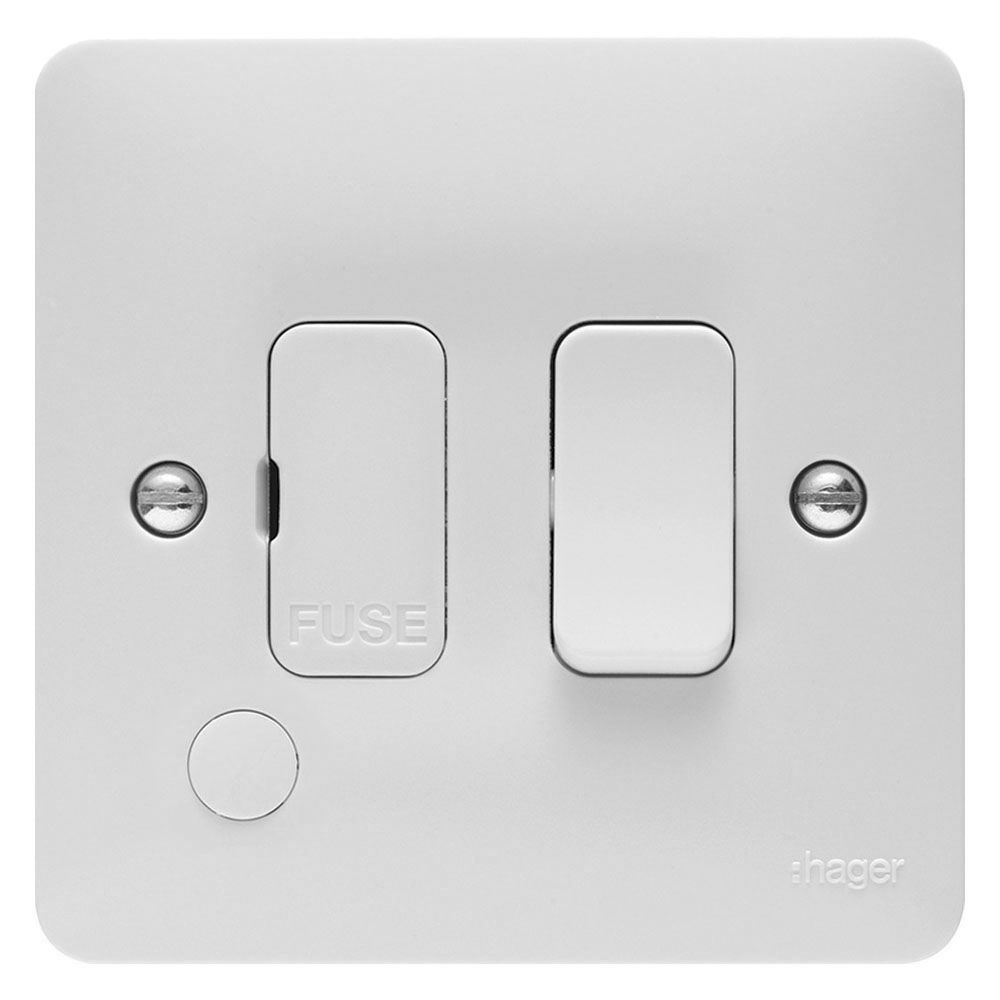

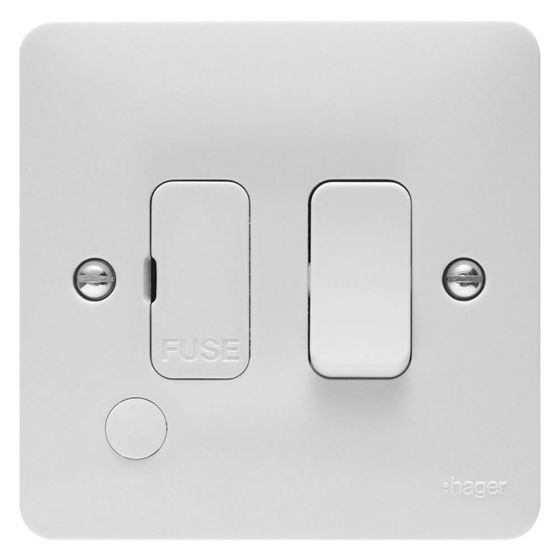

Hager Sollysta WMSSU83FO Switched Fused Spur 13A DP Flex Outlet White

Hager Sollysta WMSSU83FO switched fused spur 13A flex outlet in white. White moulded plastic with loop terminals that allow neutral looping at the switch.

• Product Type: Fused Spur
• Rating: 13 Amp
• Profile: Raised
• Style: Round Edge
• No of Gangs: 1
• Finish: White
• Colour: White
• Unique patented 3 part safety shutter.
• Twin socket comes with twin earth as standard.
• Double pole switching mechanism on switched sockets.
• Complies with BS 1363-4.
• All terminal screws grouped in-line and upward facing for ease of installation.
• Clear printed and engraved terminal markings.
• Can be wired either 1 way or 2 way.
• Clear terminal markings: 1-way L1, 2-way L2
• Loop terminal allows neutral looping at the switch.
• Capacity of each terminal 2 x 6.0 mm2 conductors.
• Features 2 separate terminals for each of Line, Neutral and Earth so flexible and fixed wiring do not occupy the same terminal.
• For multi gang switches use of a 25mm mounting box will provide increased wiring space.
• Cable clamp accommodates up to 1.5mm2 flexible cord.
• Single screw fast fix cable clamp.
• Back box required: 1 gang, 35mm
• Supplied with M3.5 x 30mm long fixing screws.
• Height: 86mm
• Width: 86mm
• Depth: 32.5mm
