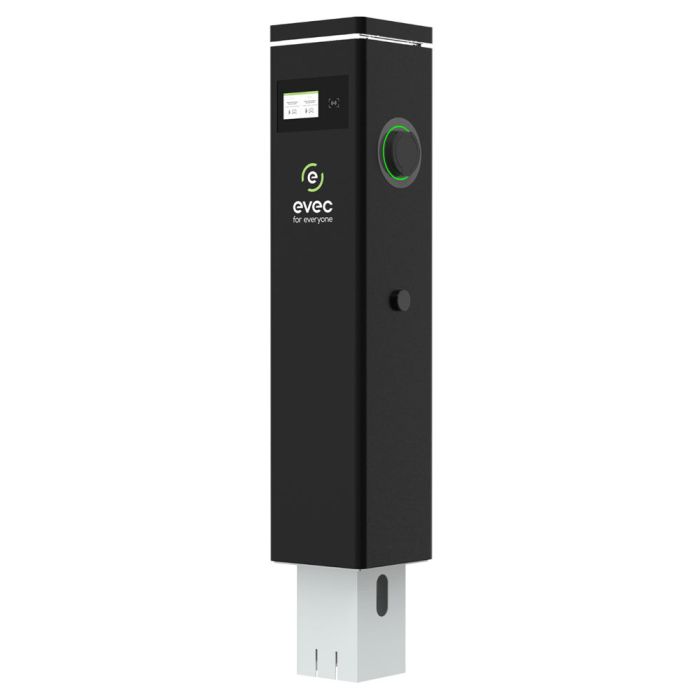

The Evec ESP01-N is a durable, cost-effective 7.4kW EV pedestal charger designed for commercial car parks, workplaces, residential developments, and public charging locations. With a universal Type 2 socket, integrated LCD display, RFID control and OCPP compatibility, it delivers a reliable and scalable charging solution suitable for all EVs. Its IP55 / IK10 construction, built-in PEN protection and PAS 1899 accessibility features make it ideal for contractors requiring a robust, compliant charger ready for outdoor installation.
Key Features of EVEC vecSPRINT EV Charger Pedestal 1 x 7kW Type 2 Socket ESP01-N:
- Compatible with all EVs and PHEVs
- RFID included as standard
- Compliant with all Smart Charge Regulations
- Ideal for private and company car parks, leisure complexes and hotels, housing developments and other public locations (addition payment terminal may be required)
- Multiple ways to charge: plug and play, pay-to-charge solutions, or via the EVEC app
- 7.4kW Type 2 socket
- 4G/Wi-Fi/Ethernet connectivity
- Over-the-air software updates
- Integrated LED light for excellent visibility at night
- LED Indicator Ring Light Around Each Socket for Easy Status Identification
- OCPP 1.6J SON compliant
- Built-in over current and 6mA DC leakage protection
- Integrated PEN protection
- Dynamic load management with CT clamps provided
- Power Supply: 1Phase
- Voltage: 220-240V
- Current: 1 x 32A
- Galvanised Sheet Powder-Coated Metal Housing
- IP Rating: IP55
- Ambient Operating Temperature: -25°C to 50°C
- Operating Humidity: 3% to 95%
- Height: 1200mm
- Width: 250mm
- Depth: 250mm
- Certifications: CE/UKCA
- Standards: EN IEC 61851, EN 62196
- Guarantee: 3-Years Provides Long-Term Assurance for Commercial Installations
