CP Electronics EBDSPIR 8A PIR Detector Ceiling Mounted 1900W White
£78.60
£65.50
In stock
Code
EBDSPIR

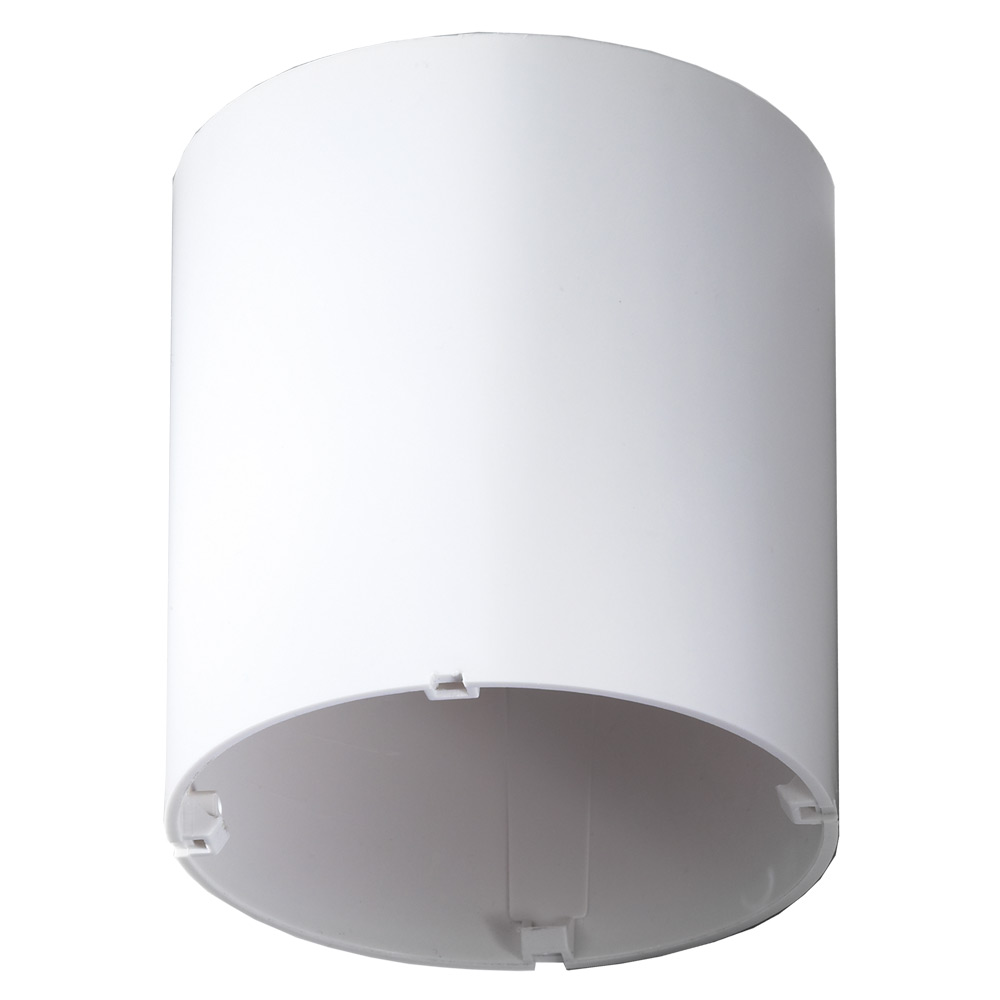

CP Electronics 8 Amp PIR detector can either be flush mounted into a ceiling tile or surface mounted with the DBB mounting box. Provides automatic control of lighting, heating and ventilation loads. Simple plug in connections reduce installation time.
- Type of detector: Passive infrared sensor
- Application: Suspended ceiling, corridors, offices, toilets
- Mounting: Flush 64mm cut out, or surface with DBB
- Detection zone and range: 360 degree, 7m at 2.8m high
- Maximum halogen and incandescent load: 8 Amp
- Maximum fluorescent load: 6 Amp
- Maximum compact fluorescent load: 3 Amp
- Maximum LED load: 3 Amp
- Maximum fan load: 3 Amp
- Voltage: 230 Volt AC 50Hz
- Protection rating: IP40
- Photocell: Lux sensing
- Time lag range: 10 seconds to 30 minutes
- Dimensions: Diameter 76mm, Height 65mm
- Colour: White
- Standards: EMC-2014/30/EU, LVD-2014/35/EU
- Warranty: 5 Years
| Model Number | EBDSPIR |
|---|---|
| Brand | CP Electronics |
| Application | Flush Mounted |
| Amperage | 8A |
| Colour | White |
| Detection Angle | 360 |
| Detection Distance | 7M |
| Lux Rating | Adjustable |
| Time Lag Range | 10sec - 99mins |
| Resistive Rating | 1900W |
| Flu Rating | 1900W |
| Compact Fluorescent Rating | 500W |
| LED Rating | 500W |
| Cut Out | 64mm |
| Voltage | 230V |
| IP Rating | IP40 |
| Height | 69mm |
| Diameter | 76mm |
| Manufacturer Guarantee | 1 Year |
