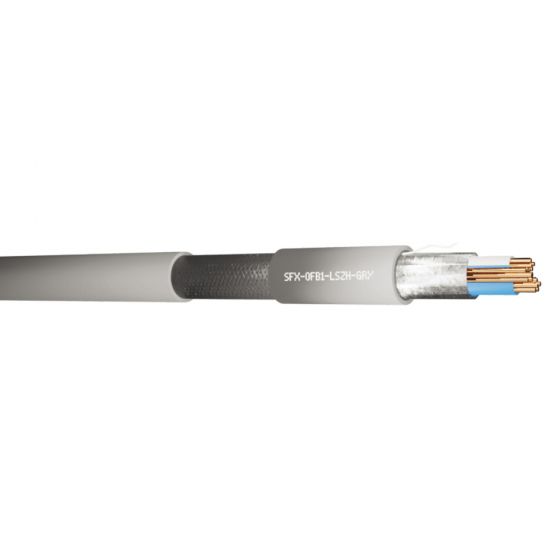

Belden Single Pair Braided Data and Communication Network Cable

Key Features of Belden Single Pair Braided Data and Communication Network Cable:

• A quality alternative to genuine Belden cable Grey outer sheath cores 24AWG
• Wideley used for RS485 data connections
• An aluminium foil screen along the length of the cable protects the carried signal from external electrical interference, braiding also provides mechanical protection
• Also used in applications such as computing where extra screening is required to prevent cross talk between pairs
• Low smoke plastic offers improved performance and protection against fire so is good for use inside public buildings and spaces as will not emit toxic gases if the cable catches fire, zero halogen versions offer even less emmisions
• Standards; CE2014/30/EU, RoHS2 2011/65/EU, LVD 2014/35/EU
• 600 Volt rated, Grey outer sheath diameter OFB1 - 5.9mm
• Supplied complete on 500M drum
• 1 Pair OFB1 LSZH
• Foil and Braid Screening
