Avenue Unswitched RCD Fused Spur 13A DP Latching White

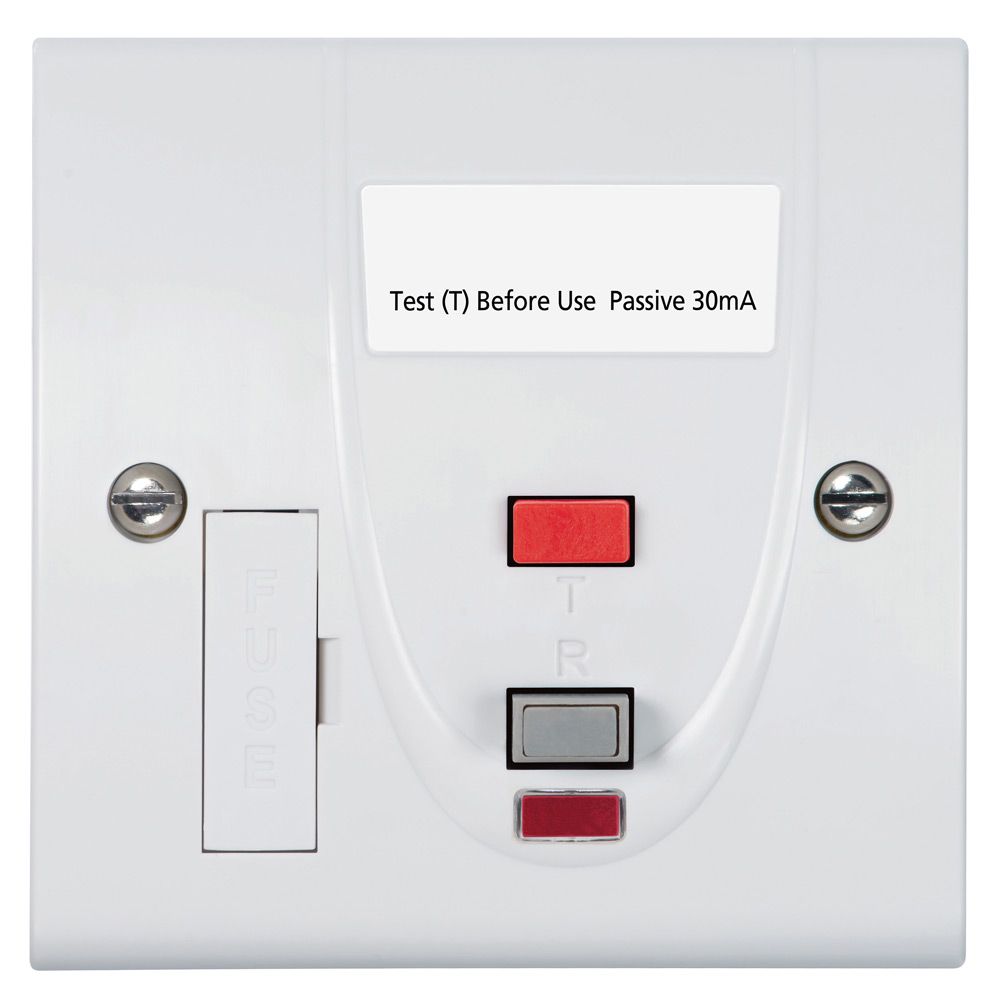

The Avenue AVRCSP13WH RCD protection fused unswitched spur is a white plastic connection unit the provides additional protection from fire hazards and electric shocks. It remains latched if the supply trips, and disconnects Neutral and Live connections, leaving Earth connects intact. It eliminates the need for plug-in RCDs.

• No of Gangs: 1
• Amps: 13A
• Finish: Plastic
• Colour: White
• Latching: Mechanical, no need to reset after power loss (passive)
• Trip Current: 30mA
• Trip Speed: 40mS
• Voltage: 230 Volt AC
• Additional protection: Pulsating DC earth faults
• Minimum box depth: 40mm
• Plate Height: 85mm
• Plate Width: 85mm
• Depth: 20mm
• Guarantee: 3 Year
• Standards: Fully Complies With BS7288:2016
