Avenue PIR Detector 3A Flush Ceiling Mounted 1000W 360 Degree White

Product Code AVCLPF

Available for Delivery only, change to Fast Delivery Service

£23.50

exc VAT

£28.20 : inc VAT

£28.20

inc VAT

£23.50 : exc VAT

Qty:

Trade Accounts

View this product on our online catalogue - Page 31

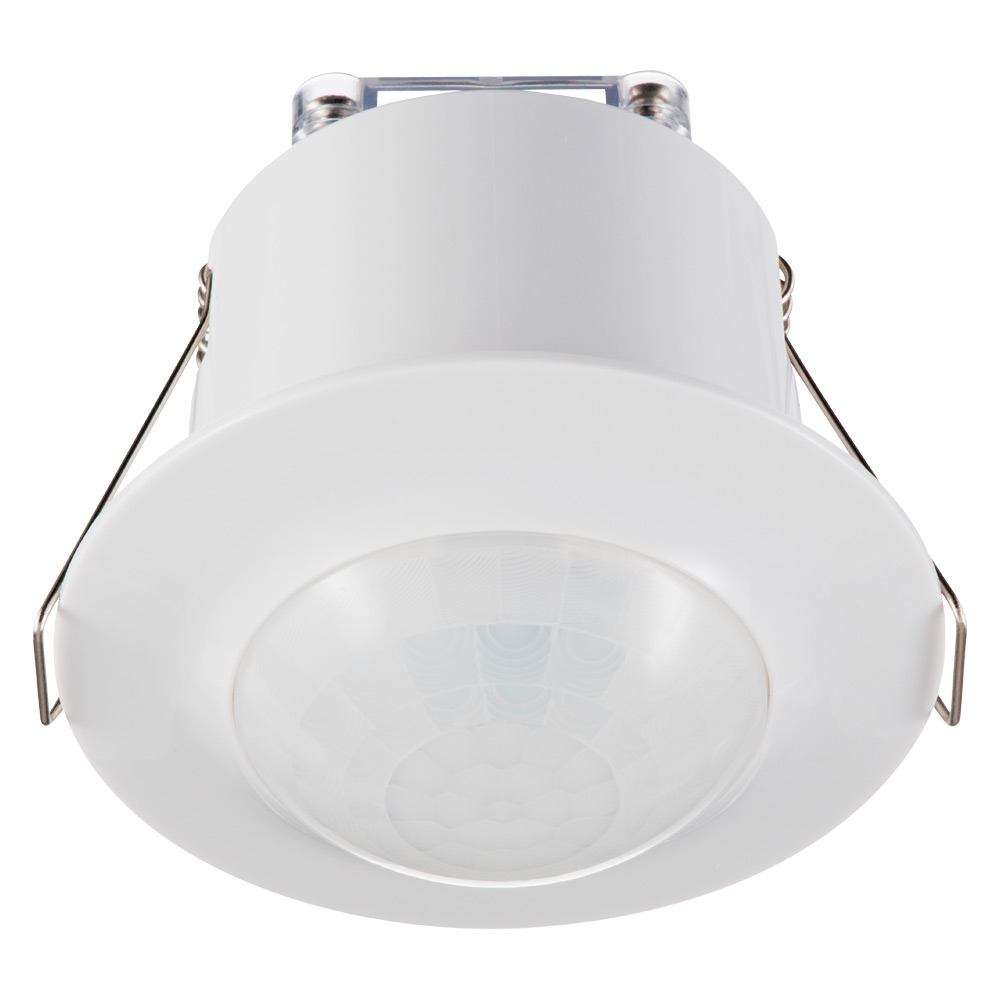

Avenue flush mounted PIR switch, designed to be mounted through a 73/75mm diameter hole in a ceiling void which is at least 78mm deep. Fully adjustable settings for time lag and lux levels. Switches on the lighting load if an area is occupied and if the ambient lux level is less than the chosen adjusted level (10 to 1000 lux). It switches off the lighting load if the area is unoccupied for the set time (up to 40 minutes). It is also suitable for non lighting loads by setting the lux adjuster to the maximum point.

  • Type of detector: Passive infrared sensor
  • Application: Suspended ceiling, corridors, offices, toilets
  • Mounting: Ceiling flush
  • Detection zone and range: 360 degree, 5m at 2.4m high
  • Maximum halogen and Incandescent load: 1000 Watt
  • Maximum fluorescent load: 750 Watt
  • Maximum compact fluorescent load: 750 Watt
  • Maximum LED load: 750 Watt
  • Minimum load: 2 Watt resistive
  • Voltage: 220-240 Volt AC
  • Protection rating: IP20
  • Photocell: Adjustable 10 to 1000 lux and inactive
  • Time lag range: 10 seconds to 40 minutes
  • Ceiling cut out: 75mm
  • Dimensions: Diameter 85mm, Height 79mm
  • Colour: White
  • Made in the UK
  • Standards: CE approved
  • Guarantee: 3 years
Read MoreRead Less
More Information
Model Number AVCLPF
Brand Avenue
Application Flush Mounted
Amperage 3A
Colour White
Detection Angle 360
Detection Distance 5M
Lux Rating 10 - 1000 Lux
Time Lag Range 10sec - 40mins
Resistive Rating 1000W
Flu Rating 750W
LED Rating 200W
Cut Out 75mm
Voltage 230V
IP Rating IP20
Height 79mm
Diameter 85mm
Manufacturer Guarantee 3 Year
